GUEST FREE ACCESS DEPLOYMENT

1. DEFINITION

This scenario allows the guests to access the network. Efficiently provide connectivity to third parties (consultants, contractors, etc.), with the adequate security controls to access your critical assets

For more high level use case information review Guest Use Case.

2. MECHANISMS (How does it work?)

  1. When the host is connected to a switch interface the guest access to a “Registration VLAN” which has a DNS poisoning to redirect all request to openNAC user portal, (openNAC can do this function).
  2. The guest must complete a registration formulary.
  3. openNAC autamatically grant the access to guests.

3. USER PORTAL (How do we display the portal?)

This is how openNAC shows the user portal.

../../../_images/guest_portal_01.png

Access to Guest formulary

../../../_images/guest_portal_03.png

4. DEPLOYMENT (Do it yourself)

The following is a light guide to deploy Guest based on basic lab.

Basic LAB deployment

4.1 REQUIREMENTS

  1. openNAC Core.
  2. Network device 802.1x (switch, ap..) in the following scenario will be used Cisco switch with IOS 12.2.55 or higher.
  3. openNAC Analytics.
  4. Client PC, in the following scenario will be used Windows 10.

4.2 SCENARIO ARCHITECTURE

../../../_images/guest_free_flow.png

4.3 SETTINGS

On Switch

The following link contains the required configuration on switch for UNAC use case that is necesary for this use case.

Basic 802.1x Cisco Switch Configuration

On Core

Configure radius shared secret.

Edit globals.ini file in Core terminal.

vim /usr/share/opennac/userportal/application/configs/globals.ini
../../../_images/guest_free_05.png

In the “registry” section you need to put the “skipGuestUserMailValidation” and “skipSponsorMailValidation” in true to skip this validations.

In displaySponsor –> this option shows the sponsor. In false can show the sponsor, and with true can’t show the sponsor.

In the “guest” section you can define the fields which the guest see.

User Portal Configuration

Go to Configuration –> Configuration vars –> User Portal tab, and enable the “Guest” option.

../../../_images/guest_free_06.png

Policy Configuration

Before configure the policy rule enable Discover plugin. For visibility propose, openNAC use a plugin knows as Discover, this plugin runs a “scan” over each endpoint which can reach trough IP address. So the first step is enable the plugin.

Go to Configuration –> Configuration vars, select plugin tab and enable Discover plugin.

../../../_images/guest_plugin_discover.png

This plugin is optional, but is very recomended to enable.

Create a new policy in ON NAC –> Policies –> Add new. In this policy the “Source” will be MAB, and the Register “VLAN”. For more info of the device select the discover plungin, and activate autolearn option.

../../../_images/guest_policy_register.png

Create another policy in ON NAC –> Policies –> Add new. This policy should have as Precondition the “ON_WEBAUTH_APPROVED” tag of the user devices, the “Source” will be MAB, and the Service “VLAN”. For more info of the device select the discover plungin.

../../../_images/guest_policy_registered.png

Remember the order of the policies is very important in openNAC, the second rule that allow the access to Guest should be before the first policy that send the guest to the “User Portal” for fill the registration form.

DNS Poison

In order to be able to redirect all the requests in the registry VLAN to the User Portal, the client must configure it in his DNS server. However openNAC allows DNS poison to be carried out in the following way:

Instal the dnsmasq package.

yum install dnsmasq

Copy the openNAC preconfigured files to the dnsmasq config directory.

cp -rfv /usr/share/opennac/utils/dnsmasq/etc/dnsmasq.conf /etc/
cp -rfv /usr/share/opennac/utils/dnsmasq/etc/dnsmasq.d/ /etc/

Edit catchall.conf file to configure the redirections.

vim /etc/dnsmasq.d/catchall.conf
../../../_images/guest_dnsmasq_catchall.png

If you want to resolve a specific URL with a specific DNS server, use the following line:

server=/<URL>/<DNS_SERVER_IP>

For redirect all requests to any site to the openNAC User Portal use the last line in the image:

address=/#/<OPENNAC_USER_PORTAL_IP>

Stop and dissable named service.

service named stop
chkconfig named off

Start and enable dnsmasq service.

chkconfig dnsmasq on
service dnsmasq start

It is important that the DHCP in the registry VLAN configure openNAC as a DNS server

4.4 TESTING

Go to ON NAC –> Business Profiles –> Default View. In this section you can see in real time the access from endpoints. Also administrators can check graphic output of business profiles Analytics –> openNAC –> User Devices

If there’s a business profile associate to Guest policy the output should be available here. First Step in the Register process.

In detail we can see the Register VLAN

../../../_images/guest_register_01.png

Is important to capture the IP address, using it openNAC will run the plugin over each know asset which match with the previous configured policy.

The guest will be redirect to the User Portal and fill the form.

../../../_images/guest_free_07.png

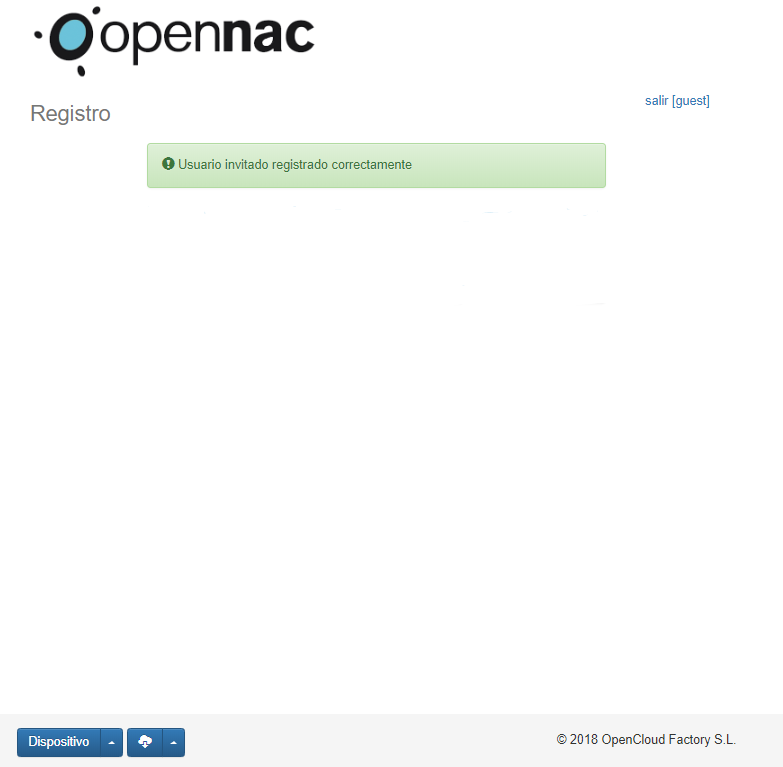

After complete the form openNAC shows a confirmation. Now the Guest has access.

../../../_images/guest_free_03.png

In the Administration Portal go to ON NAC –> Business Profiles –> Default View

If there’s a business profile associate to Guest policy the output should be available here. Now we can see the Guest in the service VLAN.

../../../_images/guest_free_04.png

4.5 TROUBLESHOOTING

  1. Please perform a basic review Basic Check.
  2. To perform a debug of authentication proces you can verify the link Radius Troubleshooting.
  3. To validate sponsor mail issues Guest Troubleshooting.
