PluginsΒΆ

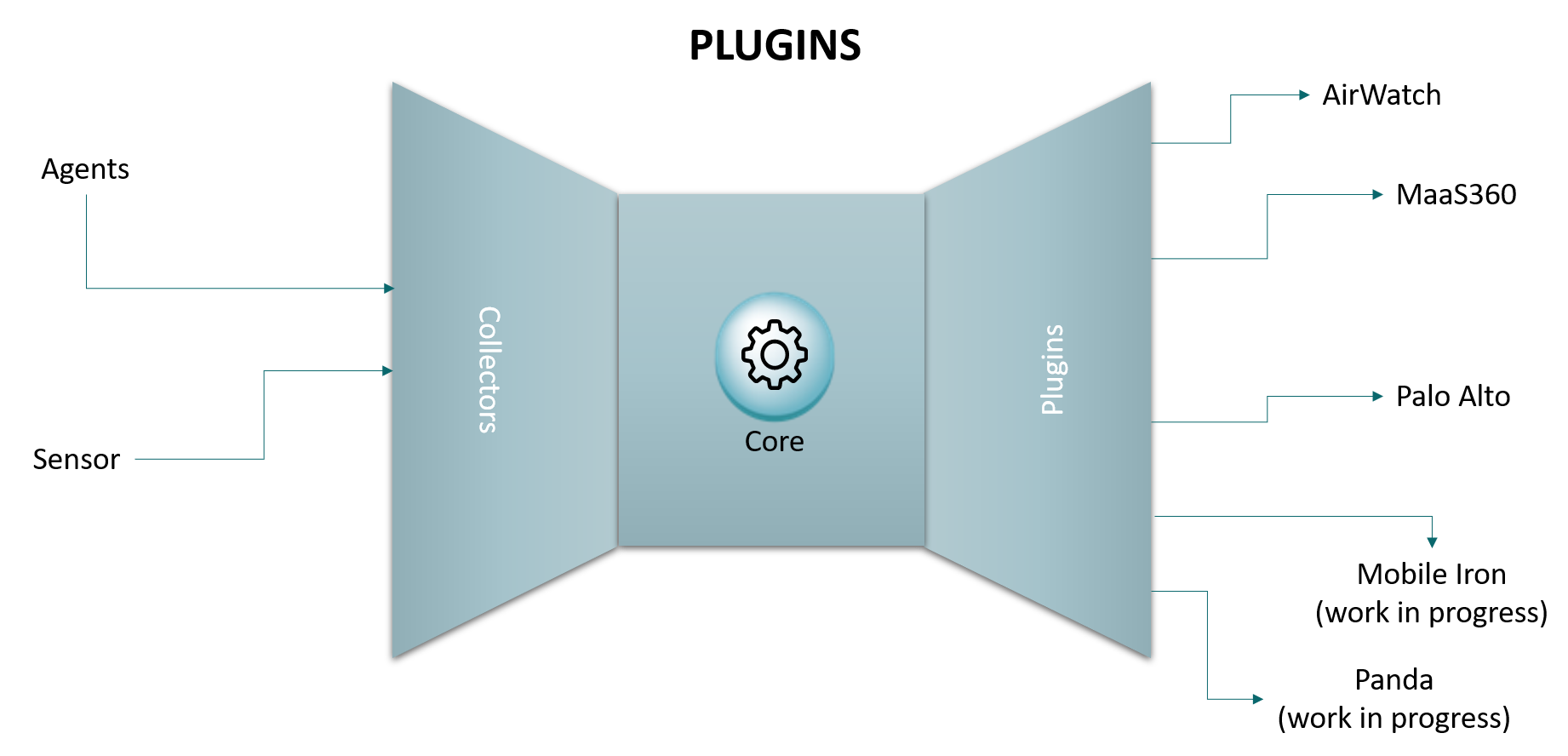

../../_images/plugins_concepts.png

One really interesting component in openNAC are the plugins, these plugins can run many different capabilities about network access control:

  • Plugins related with asset discovery process.
  • Plugins related with network orchestrations (NGFW, MDM).
  • Plugins related with asset profiling.
  • Plugins related with two factor authentication (2FA).
  • Plugins related with asset registration, categorization and its control.

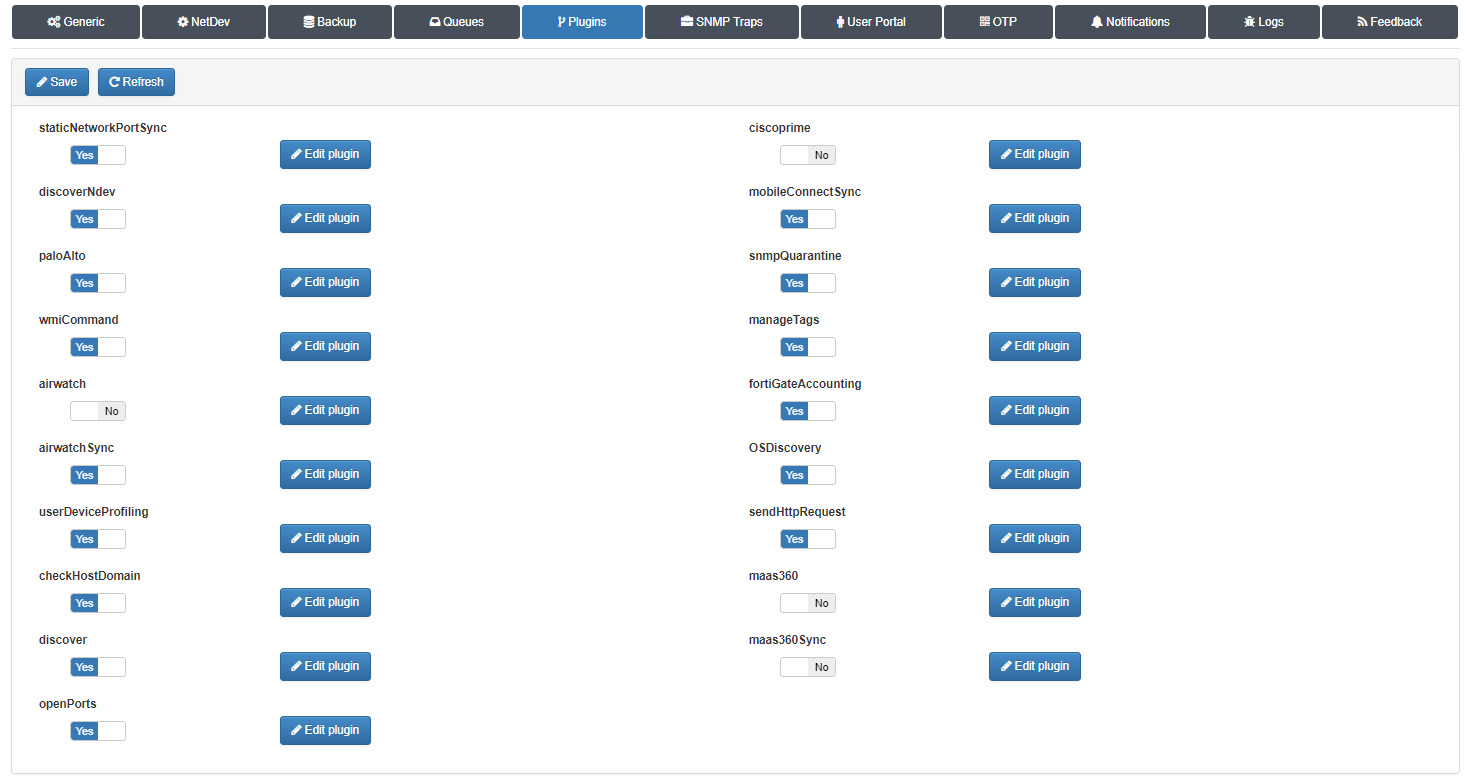

Going to Configuration -> Configuration vars -> Plugins at the TAB plugins is possible to set the default configuration parameters for Plugins, these are default values but remember that ON NAC -> Policies in each policy is possible to defined specific parameters.

To see the plugin at the policy engine is required to enable it in the configuration vars first.

../../_images/plugins_concepts1.png

There are synchronous and asynchronous plugins

Synchronous: These plugins will be execute with authentication process and modify the results of policy evaluation. The synchronous plugins have been name with Sync ending.

Asynchronous: These plugins will be execute with independence of authentication process to get more information about assets, and the result of plugin execution will not modify the policy evaluation.
