2.3.6.1.2. Remote Deployment for Windows

For cases when you need to deploy the Agent remotely across multiple computers within an Active Directory domain, you can use Active Directory GPO to automate the installation process. This section will guide you through the steps to install the Agent on your network.

2.3.6.1.2.1. Downloading script

To begin, you need to download the script for installing the Agent using Active Directory GPO. Follow these steps:

  1. Log in to the Administration Portal.

  2. Go to ON Agent > Agent Configuration.

  3. Scroll down to find the Download latest agents options.

../../../../_images/agent_download_gpo.png

  1. Click Download for the “Script to install using ActiveDirectory GPO” option.

  2. Save the script with the desired name.

2.3.6.1.2.2. Configuring the script

After downloading the file, configure the script by modifying the following variables:

  • $agentDownloadUrl

  • $downloadAgent

  • $agentInstallerPath

################################### CONFIGURE VARS ###################################

#OpenNAC Agent download URL
#NOTE: The script will download the openNAC Agent installer from this url with $downloadAgent = $true
#Examples: https://opencloudfactory.com/agent/download?type=bundle-multiplatform
$agentDownloadUrl = ""

#Download agent installer from server - $true: YES, $false: NO
#Examples: $true
$downloadAgent = $true

#Path where we have downloaded the OpenNAC Agent installer
#NOTE: To be used only with $downloadAgent = $false
#Examples: C:\temp\opennac-agent-1_0_14000-release-windows-80-FT-633132332d716f7065636f756663746f792e636d-d8.exe
$agentInstallerPath = ""

################################### CONFIGURE VARS ###################################

2.3.6.1.2.3. Creating a new GPO

To create a new GPO, open the Group Policy Management editor window:

../../../../_images/GPOO.png

Right-click on the corresponding domain to create a new GPO:

../../../../_images/GPO1.png

A dialog box will appear. We will name our new GPO Test and click ok OK:

../../../../_images/GPO1a.png

2.3.6.1.2.4. Adding the script to the GPO

Right-click the recently created GPO and click on Edit:

../../../../_images/GPO2.png

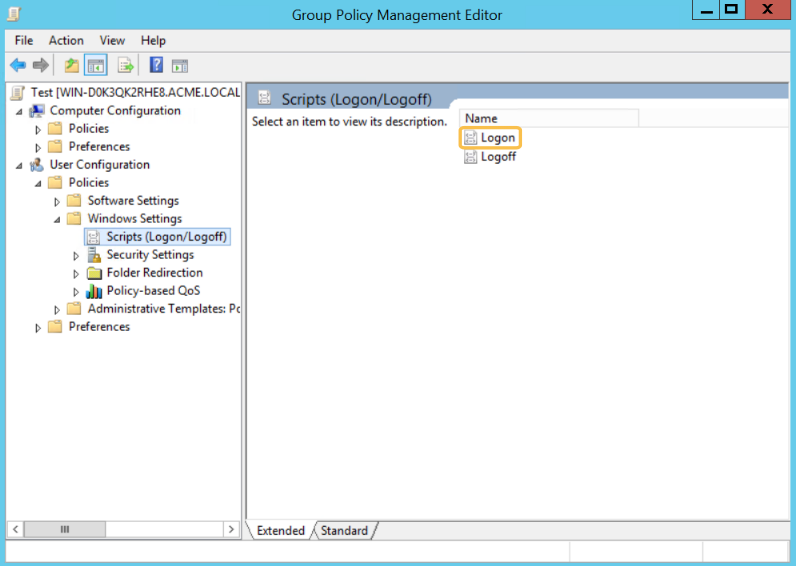

In the Group Policy Management Editor, navigate to:

User Configuration > Policies > Windows Settings > Scripts (Logon/Logoff) > Logon.

../../../../_images/GPO3.png

Select the PowerShell Scripts tab and click on Show Files:

../../../../_images/GPO4.png

Copy the the script you have just downloaded from the Administration Portal into this folder:

../../../../_images/GPO5.png

Close the folder and in the Logon Properties dialog, click on Add and select the recently copied script.

../../../../_images/GPO6.png

It might take a while for the GPO Policies to be applied. If you need an instant application, run the following command in Powershell:

Invoke-GPUpdate

Once this configuration is complete, the Agent will be executed when a domain user logs in and the data collected by the Agent will be displayed in the OpenNAC Administration Portal.
