2.11.4.5. Network Device Compliance

The Network Device Compliance dashboard displays information about network devices compliance tests and test rules. We can see the following visualizations on this dashboard:

2.11.4.5.1. Header

There are different windows that display information about network device compliance.

• Network Device Compliance Menu: Shows the different windows of the dashboard and allows to switch between them. The dashboard windows are Executive Report, Detailed Report, Families Heatmaps and Families statistics.

2.11.4.5.2. Executive Report

This window displays an executive report of the network device compliance.

• Total active Network Devices: Number of the total network devices that have passed compliance.

• Total Active Network Devices with compliance enabled: Number of total network devices that have passed compliance and have the check compliance enabled.

• Families pie: The internal pie represents the percentage of network devices by brand. The external pie represents the percentage of network devices by model.

• Compliance average per Family with compliance enabled: Shows a table with information about network devices brands and models. This table has the network device brand, the network device model, the compliance average for that brand and model, and the total number of devices for that brand and model.

• Compliance by family: Shows the number of devices with a concrete compliance percentage divided by family.

• Compliance timestamp per brand and model: Shows the number of devices with a concrete compliance percentage divided by brand and model.

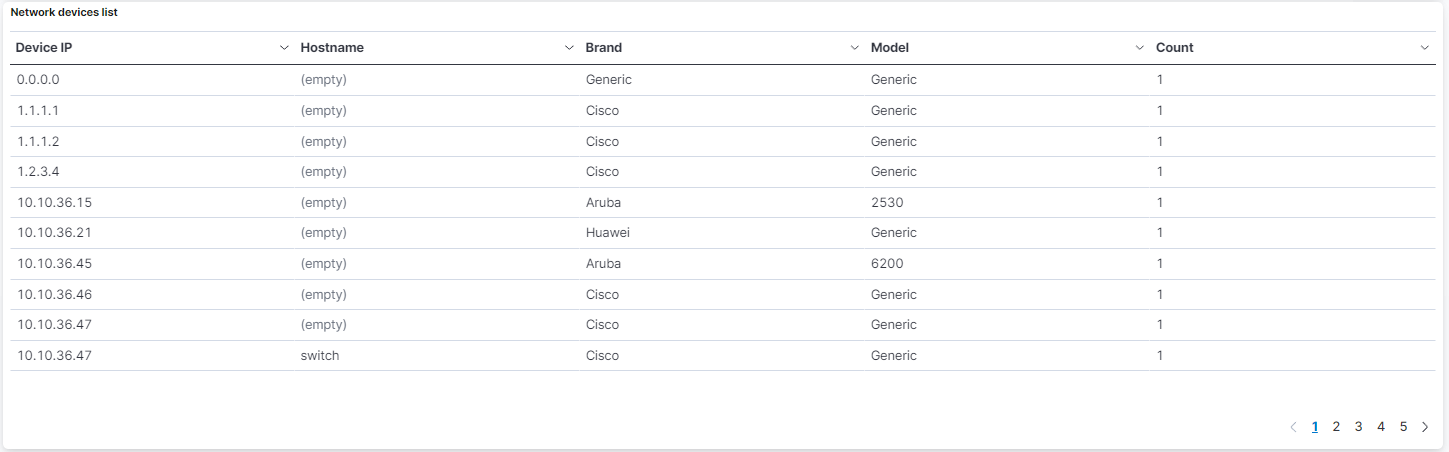

• Network devices list: Shows a table with information about network devices. This table contains the network device IP, the hostname, the network device brand, and the network device model.

2.11.4.5.3. Detailed Report

This window displays a detailed report of the network device compliance.

• NDC Filter: Allows to filter the Network Device table and the rest of the dashboard by the network device IP, the test group, the group and the OpenNAC Enterprise policy rule.

• Groups failed unique: Shows the groups failed.

• Tests failed unique: Shows the tests failed.

• Rules failed unique: Shows the rules failed.

• Rules Failed - Detailed: Shows a detailed table with the rules failed. This table represents the hostname, as well as the network device IP, the management IP, the failed rule, the subtype and the remediation for that rule.

• Network Devices Table: Shows a table with the network devices. This table contains the percentage of network device compliance, the IP, the management IP, the hostname, the brand and model, the description, the test groups passed, the test groups failed, the tests passed, the tests failed, the rules passed, the rules failed and the date modified.

• Rules error details: Shows a table with the rules error details. This table represents the hostname, as well as the network device IP, the test group, the test, the rule and the error message.

• Rules Monitoring: Shows a table with the rules monitoring. This table contains the hostname, the network device IP, the management IP, the rule, the ID, the monitor message and how many times this event is repeated.

2.11.4.5.4. Families Heatmaps

This window displays the families heatmap of the network device compliance.

• Devices groups heatmap: Shows a heatmap with the groups and the network devices brands and models that are passing these groups.

• Devices tests heatmap: Shows a heatmap with the tests and the network devices brands and models that are passing these tests.

• Devices rules heatmap: Shows a heatmap with the rules and the network devices brands and models that are passing these rules.

2.11.4.5.5. Families Statistics

This window displays the families statistics of the network device compliance.

• Compliance Groups: Shows the number of groups passed or failed by brand and model.

• Compliance Tests: Shows the number of tests passed or failed by brand and model.

• Compliance Rules: Shows the number of rules passed or failed by brand and model.
